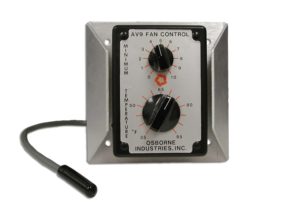

AV-9 Variable Speed Fan Control (Refurbished)
The discontinued AV-9 single-room Variable Speed Fan Control improves the efficiency of total ventilation systems in barns. Set-point adjustment allows farm personnel to set the temperature above which fan speed rises for more cooling ventilation. The AV-9 automatically increases fan speed as temperature rises until operating at full speed at 5° F above set-point. “Odor Knob” adjustment sets minimum fan speed in winter. If the winter-minimum ventilation rate chooses with this knob is too low for good air quality, simply speed up the fans by moving the knob to a higher setting.
Operates on 120/240VAC without changing any internal connections. Works with PSC-type motors. Current rating is 9.0 Amps at 120/240VAC. Fits directly to standard 4×4 junction boxes, fully watertight and barn-ready. Controls 1/25, 1/6, 1/4, and 1/2 HP motors of the same size.
This is a factory refurbished model. Limited quantities available. Contact Osborne for availability and shipping quote.
|Fan Type||Variable speed fan control (refurbished)|
|Motors Controlled*||1/25 (up to 6), 1/6 (up to 3), 1/4 (up to 2), 1/2 (up to 1)|
* All motors must be the same size.
