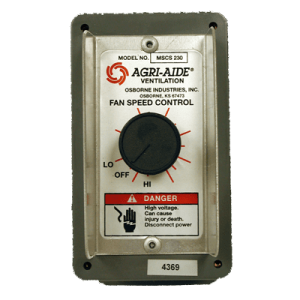

Manual Control, 240V
$90.00
Description
Control exhaust or circulation fans of the same horsepower with this simple, manual, variable speed control to control ventilation rates based on indoor conditions. Simply change settings until fan speeds fit conditions and optimize ventilation quality. 240VAC. 4 amp max capacity. Watertight, corrosion-resistant, NEMA 4X enclosure.
Specs
| Operating Power | 240 VAC, 1 PH, 60 Hz |
| Maximum Output | 4 amps |
| Minimum Speed Adjustment Range | 20%-100% (includes fan off mode) |
| Enclosure | PVC, NEMA 4X Standard, single gang 3-7/8 x 2-3/4 x 4-5/8 in. |
For internal circuit replacement, contact Osborne and reference part number FE-00MSCC-230.
Parts
Contact Osborne to order.
Internal circuit (240V) – FE-00MSCC-230

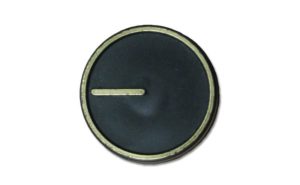

Adjustment knob – RED-0510
