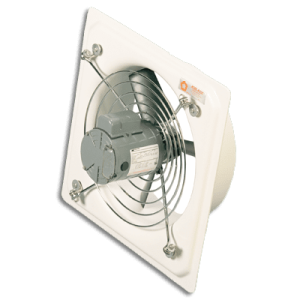

Panel Fan 16″, 2353 CFM

SKU: FV-P1619V
Availability: Available

Description

The simple, basic design of Osborne’s AGRI-AIDE Panel Fans efficiently and cost-effectively exhaust air from barns. The basic design allows you to add your own framing, blade guards, and shutters as desired. Note: there is no outside blade guard protection on Osborne Panel Fans. Adequately protect before use.

The 16-inch panel fan features:

  • Totally enclosed, thermally protected, heavy-duty, variable speed 1/6 HP motor.
  • Polypropylene fan propellers with replaceable blades.
  • Nickel-plated motor mount/front blade guard.
  • Osborne RTM-Glas™ fiberglass reinforced plastic orifice housing that is absolutely rigid.
    Contact Osborne for pricing and shipping quote.

Specs

Catalog Number FV-P1619V
Fan Type Variable Speed
Normal Speed 1725 RPM
Voltage 120/240 VAC
Power 1/6 HP (0.12 kW)
Diameter 16 in. (406 mm)
Max Airflow 2353 CFM at 0.125 in. w.g.
Shipping Weight 30 lbs. (14 kg)
