Pit Fan Enclosure

Tag: Category: SKU: FV-00PFE1

This item ships motor freight

This item must be shipped via motor freight. You will be contacted with a freight estimate after you complete your purchase.
$225.00

Description

Owing to its corrosion-resistant, all plastic construction, this pit fan enclosure is perfect for the corrosive and high-moisture gases present in animal confinement buildings with deep pits.  Smooth, non-porous, fiberglass-reinforced composite construction is fully rigid and never becomes brittle in cold weather or warps in the summer heat.

Sized for use with 8, 12, or 16″ Slant Wall or Panel Exhaust Fans. Includes back surface to accept PVC duct or fan. Adaptable to fans made by other manufacturers.

Specs

Construction Fiberglass reinforced composite

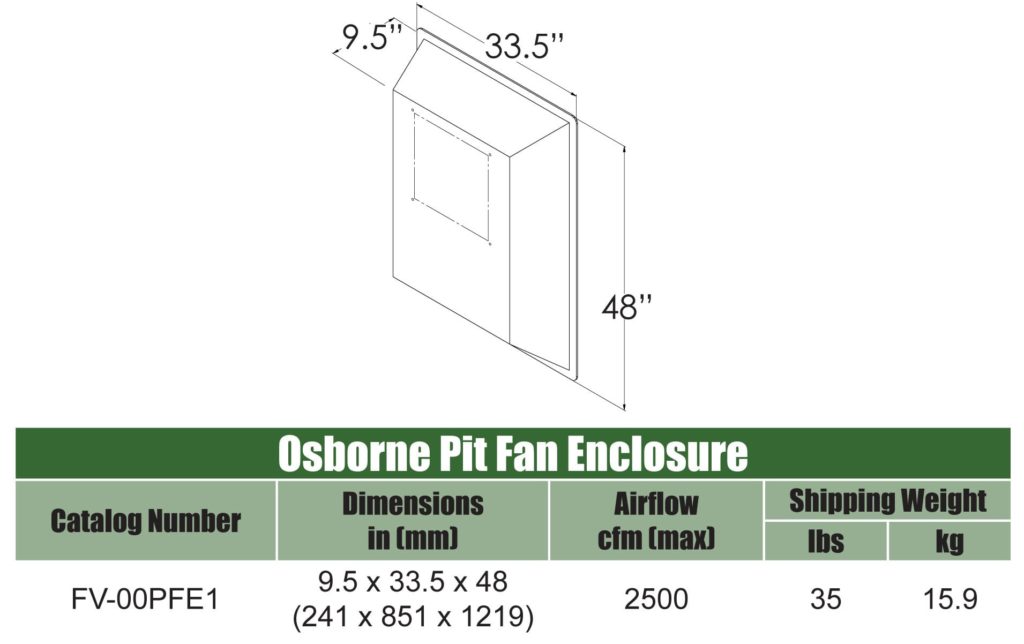

Overall Dimensions (L x W x H) 48 x 33.5 x 9.5 in. (1219 x 851 x 241 mm)
Max Airflow 2500 CFM
Weight 35 lbs. (15.9 kg)

Parts

Contact Osborne for ordering information.

Fan Mounting Bolt Kit (includes four stainless steel bolts, flat washers, and neoprene well nuts) – KV-PFE102
