Description

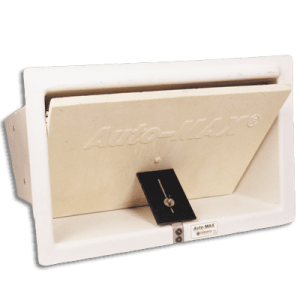

Auto-MAX Wall Inlets keep flow and air velocities at proper levels for a draft-free mixing of incoming air. Transitions from day to night ventilation and from season to season occur with no need for user intervention. Pre-calibrated at our factory, Auto-MAX inlets never require adjustment – ever! Nothing beats Auto-MAX performance.
Made with corrosion-resistant structural foam with fully-rigid fiberglass-reinforced composite housing. Includes plastic screen over outdoor air passage to prevent bird entry. 647 CFM, 26.75″ long x 22.5″ wide x 12.75″ high (68 x 57 x 32 cm).
Specs
Dimensions L x W x H |
26.75 x 22.5 x 12.75 in. 68 x 57 x 32 cm |
Rough Opening Height | 12.75 in. | 324 mm |
Rough Opening Width | 22.5 in. | 572 mm |
Max Airflow | 647 CFM |
Parts
Standard Replacement Parts:
Catalog Number | Description | Quantity |
KV-WI1501 | Inlet Housing, FRP | 1 |
KV-WI1502 | Baffle Assembly, PU Foam | 1 |
KV-WI1503 | Bird Screen Assembly, Nylon | 1 |
RFM-4340 | Spring Extension, 0.5 x 5.5-in., SS | 1 |
SV-WI1505 | Baffle Limiter Slide, PE | 1 |
SV-WI1506 | Eyebolt with Welded Nut | 1 |
