Complete Fan Propeller
$13.00 – $215.00
Description

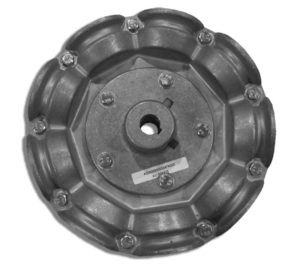

Replacement complete propeller for Slant-Wall (SW Series) and Panel (FP Series) Exhaust Fans and Super-Jet (SJ Series) Circulation Fans. All complete propellers include aluminum hub (1/2″ or 5/8″) with poly blades at various pitches, except for 8-in. Slant-Wall Exhaust Fans which require all aluminum propellers. Pitch information is imprinted onto propeller blades.

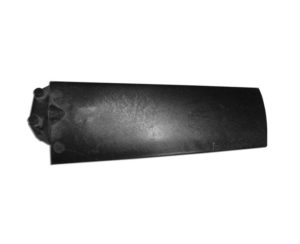

Individual propeller blades and hubs also available. Contact Osborne for ordering information.
Specs
| FAN SIZE | SLANT-WALL (SW SERIES) | PANEL (FP SERIES) | SUPER-JET (SJ SERIES) | PROPELLER STYLE | PROPELLER PART NO. |
| 8-in. | FV-SW0801V | — | — | 12° Pitch, 4 Blades, Aluminum | RVP-0812A |
| 8-in. | FV-SW0802V | — | — | 35° Pitch, 4 Blades, Aluminum | RVP-0835A |
| 12-in. | FV-SW1203V | FV-P1203V | — | 25° Pitch, 3 Blades, Poly/Alum | KV-P12250 |
| 12-in. | FV-SW1207V | FV-P1207V | — | 35° Pitch, 3 Blades, Poly/Alum | KV-P12350 |
| 12-in. | FV-SW1211V | FV-P1211V | — | 45° Pitch, 6 Blades, Poly/Alum | KV-P12450 |
| 16-in. | FV-SW1619V | FV-P1619V | FV-S1620V/FV-S1621V | 35° Pitch, 3 Blades, Poly/Alum | KV-P16350 |
| 16-in. | FV-SW1624V | FV-P1624V | — | 45° Pitch, 3 Blades, Poly/Alum | KV-P16450 |
| 20-in. | FV-SW2030V | FV-P2030V | FV-S2030V/FV-S2031V | 30° Pitch, 3 Blades, Poly/Alum | KV-P20300 |
| 20-in. | FV-SW2045V | FV-P2045V | — | 45° Pitch, 3 Blades, Poly/Alum | KV-P20450 |
| 24-in. | FV-SW2460V | FV-P2460V | FV-S2460V/FV-S2461V | 30° Pitch, 5 Blades, Poly/Alum | KV-P24300 |
| 36-in. | FV-M3611V | FV-P3611V | — | 32.5° Pitch, 3 Blades, Poly/Alum | KV-P36325 |
