Description

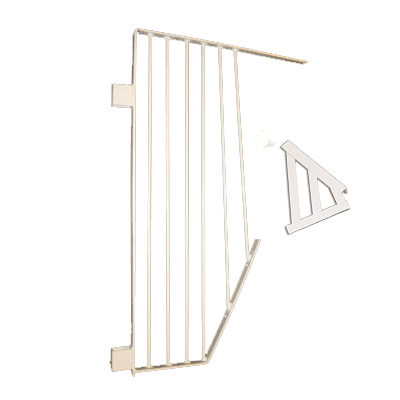

Optional fenceline adapter kit for RF1-Series Big Wheel Finish Feeders. 2 required per feeder. Use if feeder is required in the fenceline with 52.5-in. opening. Attaches securely to the trough divider and crossbar. Adjustable drop rod tubes attach to fence panel and drop rod (not included) holds feeder in place. Easily remove the feeder for cleaning. Includes inner and outer frames, drop rod tubes, and fasteners. Made of strong steel with white gloss enamel finish.
Specs
Catalog Number | FF-PF1A52 |
Size Suitable for Feeder Model | RF1 |
Requirements | 2 kits required/feeder For 52.5-in. fenceline opening |
Parts
PART NUMBER | DESCRIPTION | QUANTITY |
FF-PF2A52 | Fenceline Adapter Kit for 52.5-in. Opening, RF1, Drop-Rod Style (Includes Items Below) |
1 |
KF-PF2A52 | Fenceline Adapter Outer Frame, Drop-Rod Style | 1 |
KF-F1A003 | Fenceline Adapter Inner Frame, RF1 | 1 |
SF-PF2A46 | Drop Rod Tube, Adjustable Install | 2 |
KF-F1A002 | Bolt Kit, Fenceline Adapter | 1 |
RFB-2050 | Drop Rod Tube Bolt, 5/16 x 7/8-in., ZP | 4 |
RFN-2400 | Drop Rod Tube Nylon Lock Nut, 5/16-in., ZP | 4 |
Note: Bolt Kit (KF-F1A002) includes: 1 ea. 5/16 x 7/8-in. ZP Bolt (RFB-2050), 2 ea. 5/16 x 1-1/2-in. ZP Bolts (RFB-2150), and 3 ea. 5/16-in. ZP Flange Nuts (RFN-2300).
